ABS sensor DELPHI OPEL INSIGNIA
DELPHI ABS sensor
OPEL INSIGNIA catalogue online
DELPHI Wheel speed sensor Top OPEL INSIGNIA Models
Sensor ABS OPEL INSIGNIA in brand quality: Top Manufacturers
Have you ever bought DELPHI products from AUTODOC and do you want to share your experience? Help others make the best choice. Leave your feedback and recommendations
DELPHI ABS wheel speed sensor OPEL INSIGNIA of brand quality in our amazing selection
We offer DELPHI brand produts in OEM quality. Find the right branded ABS sensor spare part your OPEL INSIGNIA car in our catagory.
DELPHI SS20377 ABS sensor
Active sensor, 2-pin connector, 740mm
Sold by AUTODOC
DELPHI SS21031-12B1 ABS sensor
Active sensor, 2-pin connector, 1746mm
Sold by AUTODOC
DELPHI SS20356 ABS sensor
Active sensor, 2-pin connector, 1725mm
Sold by AUTODOC
DELPHI SS20594 ABS sensor
Active sensor, 2-pin connector, 840mm
Sold by AUTODOC
DELPHI SS21328-12B1 ABS sensor
Active sensor, 2-pin connector, 1500mm
Sold by AUTODOC
DELPHI SS21329-12B1 ABS sensor
Active sensor, 2-pin connector, 1890mm
Sold by AUTODOC

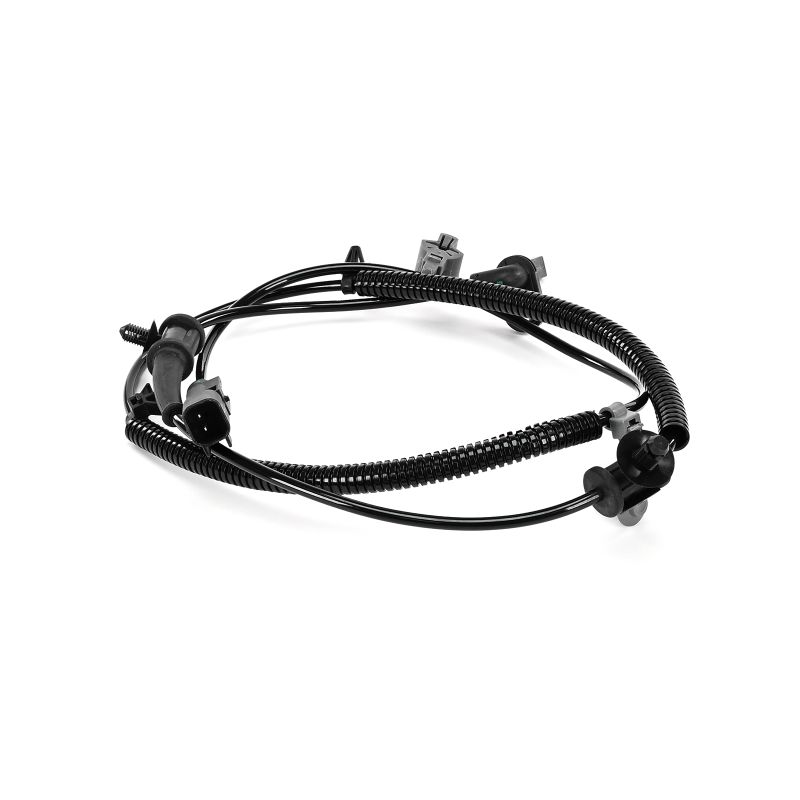

DELPHI SS21344-12B1 ABS sensor
Active sensor, 2-pin connector, 1260mm
Sold by AUTODOC
DELPHI SS20357 ABS sensor
Active sensor, 2-pin connector, 1468mm
Sold by AUTODOC
DELPHI SS21252-12B1 ABS sensor
Active sensor, 2-pin connector, 295mm
Sold by AUTODOC
DELPHI SS20251 ABS sensor
Active sensor, 2-pin connector, 779mm
Sold by AUTODOC
DELPHI SS20773 ABS sensor
Active sensor, 2-pin connector, 1025mm
Sold by AUTODOC
DELPHI SS21261-12B1 ABS sensor
Active sensor, 2-pin connector, 553mm
Sold by AUTODOC
DELPHI SS21262-12B1 ABS sensor
Active sensor, 2-pin connector, 552mm
Sold by AUTODOC
DELPHI SS20817 ABS sensor
Active sensor, 2-pin connector, 820mm
Sold by AUTODOC
DELPHI SS20350 ABS sensor
Active sensor, 2-pin connector, 620mm
Sold by AUTODOC
DELPHI abs sensor for OPEL INSIGNIA: top must-read articles
DELPHI ABS sensor: What is the price of this product for the OPEL INSIGNIA?
The price of DELPHI products in the category ABS sensor for the OPEL INSIGNIA ranges from £11.00 to £23.00, depending on the features and specifications.
faq
DIY repair is only possible if the ABS malfunction is caused by faulty wheel speed sensors. Due to their location, they are highly exposed to moisture and dirt and therefore often fail. In some cases, it is enough to clean the sensitive element with a dry soft lint-free cloth. If this doesn’t work, replace the component.
If a malfunction of the anti-lock braking system is caused by a failure of the electronic control unit or a hydraulic unit, you will need professional assistance. Visit a car repair shop.
First, inspect the component. Cracks on its housing, torn and oxidised wires, and a damaged connector indicate a malfunction.
Use a multimeter for thorough diagnostics. Before you start testing the component, check how the wheel speed sensors are installed in your car. You can find this information in the vehicle repair manual.
You will need to raise the car and most likely to remove the wheel in order to access the part. Next, disconnect the wire from the ABS control unit. Connect the multimeter probes to the sensor contacts and measure resistance. Compare the received values with nominal data – they are usually specified in the car owner’s manual. As a rule, these values vary within the range of 0,5–2,0 kiloohms.
The next step of testing is measuring the voltage on the sensor contacts. To do this, rotate the wheel with your hand at a frequency of about 1 cycle per second. With this frequency, the voltage should be 0,25–0,50 V.
This procedure is determined by the vehicle make and model. Typically, the steps are the following:
- Engage the parking brake and secure the axle opposite to the one on which you’re going to replace the component with wheel chocks. Raise the car.
- Remove the wheel.
- Unscrew the fasteners of the brake caliper, pull it aside and secure with a wire.
- Remove the brake pads and a disc.
- Unscrew the sensor fastening bolt and remove the component from its mounting seat.
- Disconnect the wire from the ABS control unit and car body.
- Install a new part by following all steps in reverse order.
