Audi A3 Water Pump Replacement: Expert UK Guide

Table of Contents

How to Replace the Water Pump on Your Audi A3
Audi A3 Water Pump Location
Causes of Water Pump Failure on the Audi A3
Symptoms and Signs of Audi A3 Water Pump Failure
What Happens if the Water Pump Is Not Fixed?
Common Problems and Solutions
Replacement Costs Comparison
Final Thoughts
Frequently Asked Questions (FAQ)

The cost of replacing an Audi A3 water pump typically ranges from £250 to £1,200 in the UK, depending on the type of engine and whether you visit an independent garage or a main dealer. The water pump circulates coolant through the engine to maintain an optimal temperature; when it fails, you may notice coolant leaks, overheating or an unusual whining noise. This guide covers all the information UK drivers need about diagnosing, replacing and maintaining the water pump in their Audi A3, across all model years.

How to Replace the Water Pump on Your Audi A3

Replacing an Audi A3 water pump requires mechanical knowledge, the right tools, and an engine-specific approach. The exact procedure varies by engine. On many belt-timed engines (including many TDI variants, and some petrol engines), the pump is replaced during timing belt service. On some chain-timed engines, the pump may be part of a larger housing, and may also use a separate, small toothed belt that should be renewed at the same time. Before starting, make sure the engine is completely cold, and confirm the correct pump for your engine code.

Step 1: Disconnect the negative battery terminal (where required), and drain the cooling system into a suitable container. Some Audi A3 variants have a radiator drain plug, but on others you may need to drain via the lower hose, so follow the correct procedure for your model. Remove the undertray to improve access from underneath.
Step 2: Remove the auxiliary drive belt by releasing the tensioner. If your engine uses a separate water-pump drive belt (fitted on some engines), replace it alongside the pump. Note belt routing before removal.
Step 3: Disconnect the coolant hoses from the pump housing, and expect residual coolant to drain. On many 1.8/2.0 TFSI engines, the water pump and thermostat are integrated into a single module, so additional components may need to be removed for access.
Step 4: Remove the water pump mounting bolts using the appropriate socket set. Bolts may be corroded, especially on higher-mileage vehicles, so apply penetrating fluid beforehand. Carefully extract the pump from the engine block, taking care not to damage the mounting surface.
Step 5: Clean the mating surface thoroughly with a plastic scraper and a suitable cleaner. Remove old gasket material without scratching the aluminium surface.
Step 6: Install the new water pump with a fresh gasket or O-ring seal. Apply a thin film of coolant to rubber seals to ease installation. Torque the mounting bolts to manufacturer’s specifications in a cross-pattern sequence to ensure even pressure distribution.
Step 7: Reconnect the coolant hoses and replace any weak hose clips. Refit the belts and confirm the correct routing, alignment and tension.
Step 8: Refill with coolant that meets the correct VW/Audi specification for your vehicle's model year. For example, this could be TL 774-G/G12++, TL 774-J/G13 or TL 774-L/G12evo. Avoid mixing incompatible coolant types. Bleed the system using the correct method for your engine. Then, check for leaks and recheck the level once the engine has undergone a heat cycle.

The time taken to replace a water pump varies depending on the engine and access. As a general rule of thumb in the UK, water pump replacement takes around 2–4 hours, but it can take longer if the pump is replaced alongside the timing belt or if access is restricted. Many UK owners schedule water pump replacement at the same time as the timing belt service, because much of the labour is the same for both jobs.

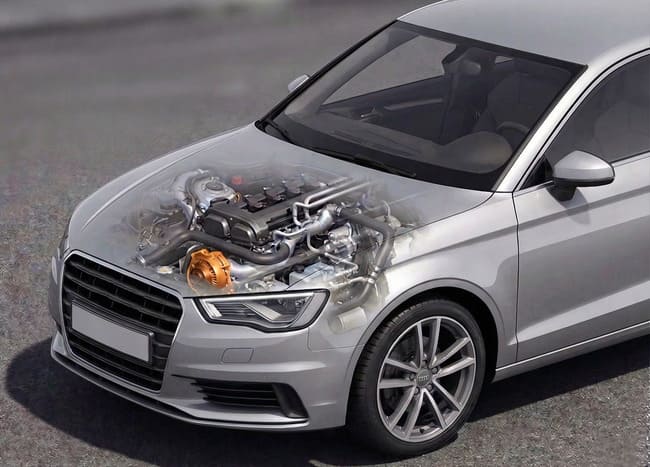

Audi A3 Water Pump Location

The location of the water pump in the Audi A3 depends on the model generation, but most importantly on the engine family and engine code. On many 1.4 TFSI engines from the EA211 family, for example, the coolant pump is integrated into the thermostat housing. This housing is installed on the cylinder head on the transmission side and the pump is driven by the exhaust camshaft via a toothed belt.

On EA888 Gen 3 petrol engines (including 1.8 TFSI and 2.0 TFSI), the water pump and thermostat are usually packaged together and mounted on the front of the engine, directly underneath the intake manifold. This makes access difficult.

On 2.0 TDI engines, the coolant pump is driven by the toothed belt, so removing the timing belt is part of the job.

Some Audi A3 variants also use an electric auxiliary or after-run coolant pump to circulate coolant under specific conditions. The exact location varies by engine and equipment, and it is often mounted at the front of the vehicle near the radiator fan shroud and coolant hoses.

Causes of Water Pump Failure on the Audi A3

Worn bearings: The pump shaft runs on sealed bearings that wear with age and mileage. Contaminated coolant can accelerate bearing wear, leading to rough operation and, eventually, failure.
Failed seals and gaskets: Mechanical seals and gaskets degrade due to heat cycling and chemical exposure. Coolant seepage from a weep hole is often an early warning sign.
Housing and module cracking (common on some petrol engines): On EA888 Gen 3 engines, the water pump and thermostat assembly is largely plastic, and the housing can crack over time due to heat cycling and vibration, or leaks can develop at the sealing surfaces.
Incorrect coolant specification: Use coolant that meets the correct VW TL 774 specification for your vehicle. Newer VAG coolants such as G12evo correspond to VW TL 774 L, and manufacturer data sheets explicitly reference these specifications and compatibility claims.
Incorrect belt tension: Incorrect tensioning after timing belt work can increase bearing load and shorten component life.
Cavitation damage: Air trapped in the cooling system can contribute to cavitation, which erodes surfaces over time, especially if the system was not bled correctly after prior work.

Engine (typical examples)	Pump location (typical)	Drive type (typical)
1.4 TFSI (EA211 family)	Thermostat housing on the transmission side of the cylinder head	Toothed belt driven from exhaust camshaft
1.8/2.0 TFSI (EA888 Gen 3)	Front side of engine, underneath the intake manifold	Pump/thermostat assembly, largely plastic housing
2.0 TDI	Timing belt end of engine	Toothed belt driven (belt removal required)
Auxiliary/after-run pump (some variants)	Varies, often front near fan shroud/coolant hoses	Electric motor

RIDEX 1260W0035 Water pump Number of Teeth: 19, Cast Aluminium, with seal ring, Plastic

Reviews - 9

RIDEX Water pump Number of Teeth: 19, Cast Aluminium, with seal ring, Plastic

Article number: 1260W0035

compared to RRP £44.70

£13. 49

Price per item

price incl. 20% VAT, excl. delivery costs

Sold by AUTODOC

RIDEX 1260W0064 Water pump Number of Teeth: 19, Belt Pulley Ø: 56,2 mm

Reviews - 4

RIDEX Water pump Number of Teeth: 19, Belt Pulley Ø: 56,2 mm

Article number: 1260W0064

compared to RRP £33.60

£15. 99

Price per item

price incl. 20% VAT, excl. delivery costs

Sold by AUTODOC

RIDEX 1260W0018 Water pump Number of Teeth: 19, with gasket/seal, Mechanical, Belt Pulley Ø: 56,2 mm

Reviews - 18

RIDEX Water pump Number of Teeth: 19, with gasket/seal, Mechanical, Belt Pulley Ø: 56,2 mm

Article number: 1260W0018

compared to RRP £44.40

£23. 99

Price per item

price incl. 20% VAT, excl. delivery costs

Sold by AUTODOC

RIDEX 1260W0334 Water pump Number of Teeth: 19, with gasket/seal, Metal, for timing belt drive

Reviews - 25

RIDEX Water pump Number of Teeth: 19, with gasket/seal, Metal, for timing belt drive

Article number: 1260W0334

compared to RRP £47.40

£24. 49

price incl. 20% VAT, excl. delivery costs

Sold by AUTODOC

RIDEX 1260W0343 Water pump Cast Aluminium, with belt pulley, with water pump seal ring, without sensor, Mechanical, Metal, without housing

Reviews - 8

RIDEX Water pump Cast Aluminium, with belt pulley, with water pump seal ring, without sensor, Mechanical, Metal, without housing

Article number: 1260W0343

compared to RRP £57.20

£32. 49

Price per item

price incl. 20% VAT, excl. delivery costs

Sold by AUTODOC

Symptoms and Signs of Audi A3 Water Pump Failure

Coolant leaks: Puddles under the car (often pink or purple on many A3s), dried staining, or a sweet coolant smell can indicate a cooling-system leak. Check the engine undertray and surrounding areas, as the undertray can conceal drips until it’s removed during servicing or an MOT inspection.
Engine overheating: If the temperature gauge rises above its normal position (often around 90°C) or continues climbing towards the red zone, the engine may not be circulating coolant effectively. Overheating is often worse in slow traffic or hot weather. Reduce load immediately, pull over safely, and switch the engine off if the temperature continues to rise.
Whining or grinding noise: A high-pitched whine, squeal, or grinding noise from the front of the engine can be caused by a failing pump bearing, but similar noises can also come from belt-driven accessories or tensioners. If the noise changes with engine speed, have the cooling system and auxiliary drive inspected promptly.
Steam from the bonnet: Steam from the engine bay usually means coolant is contacting hot components. Treat this as an emergency: pull over as soon as it’s safe, switch the engine off, and allow it to cool before checking the coolant level.
Low coolant warning light: Repeated low-coolant warnings despite topping up suggest an ongoing leak. Check the expansion tank when the engine is cold; the level should sit between the minimum and maximum marks. Persistent coolant loss needs immediate investigation.
Poor cabin heating: Weak heat from the vents can be caused by low coolant level, air trapped in the system, a thermostat fault, or a restricted heater matrix. A failing main water pump can contribute, but it’s not the only likely cause.
Milky residue in the oil: A mayonnaise-like deposit under the oil filler cap can be caused by condensation on short journeys, especially in cold weather. If it appears alongside coolant loss, overheating, white exhaust smoke, or milky oil on the dipstick, treat it as urgent and have the engine checked.

What Happens if the Water Pump Is Not Fixed?

Ignoring a failing water pump or continuing to drive with coolant loss can escalate quickly from minor leaks to severe overheating. Overheating can damage the head gasket, warp the cylinder head, and, in worst cases, cause major engine damage that runs into several thousand pounds. By comparison, head gasket repairs in the UK commonly range from hundreds to over a couple of thousand pounds, depending on the vehicle and the extent of damage, and the RAC cites an average head gasket replacement cost of around £721.

If overheating leads to catastrophic internal damage, an engine rebuild or replacement can cost several thousand pounds in the UK.

MOT note (UK): Small coolant leaks are not automatically an MOT failure, but excessive leaks that create a pool (more than 75 mm in diameter within five minutes), or leaks judged to pose an environmental or road-safety risk, can result in a Major or Dangerous defect.

Separately, an illuminated engine MIL/EML indicating a malfunction can also lead to an MOT failure, and obvious defects to visible emission-control components can be grounds for rejection.

What Happens if the Audi A3 Water Pump Is Not Fixed

Common Problems and Solutions

Thermostat housing leaks: On many petrol engines, the water pump and thermostat are packaged into a single plastic housing, and leaks from the housing or sealing surfaces are a common fault on some VAG engine families. In practice, the usual fix is replacement of the complete pump/thermostat assembly, rather than attempting plastic repairs. Costs vary by engine, access, and parts choice, but they often sit within the wider UK water-pump replacement range, and can rise if additional components are required.
Coolant pipe corrosion: Coolant contamination and poor maintenance can accelerate internal corrosion, and external deterioration of pipes, couplers, and flanges. If you are replacing the pump due to a leak, inspect nearby coolant pipes and joints, and refresh coolant using the correct specification for the vehicle.
Air lock problems: Trapped air can cause overheating symptoms even after a new pump is fitted. Bleeding procedures vary by engine code, and some setups benefit from vacuum filling equipment. Use the correct workshop procedure, and recheck the coolant level after a full heat cycle.
Drive belt tensioner failure: Weak tensioners allow belt slip that damages new pump bearings prematurely. Always replace tensioners, idler pulleys, and drive belts simultaneously with the water pump to ensure longevity. Quality alternative kits from Gates or INA typically cost £100-£150 for complete sets.
Expansion tank cap faults: A defective pressure cap can prevent the cooling system from building the correct pressure, which can make coolant boil earlier, and mimic pump or circulation problems. Caps are often inexpensive parts, and for the Audi A3 they can be found in a low single-digit to low-teens price range, depending on brand.

Replacement Costs Comparison

Service Provider	Parts Cost (indicative)	Total Cost (can vary widely by engine and job scope)
DIY (OEM parts)	£80-£200	£150-£300
Independent garage	£120-£250	£400-£750
Main dealer	£180-£350	£800-£1,200

If the pump is replaced alongside a timing belt, a belt kit with pump is a common approach, and UK retail pricing for such kits can sit around the low-hundreds, depending on application.

Online retailers such as AUTODOC list a wide spread of A3 water-pump prices by brand and engine, and publish delivery estimates for the UK that depend on stock status and courier conditions.

RIDEX 1260W0284 Water pump switchable water pump, with water pump seal ring, Mechanical, Vacuum-controlled

Reviews - 17

RIDEX Water pump switchable water pump, with water pump seal ring, Mechanical, Vacuum-controlled

Article number: 1260W0284

compared to RRP £102.70

£56. 49

Price per item

price incl. 20% VAT, excl. delivery costs

Sold by AUTODOC

RIDEX 1260W0234 Water pump Number of Teeth: 29, with gasket/seal, with clip, without sensor, with coolant regulator, Grey Cast Iron, with housing

Reviews - 3

RIDEX Water pump Number of Teeth: 29, with gasket/seal, with clip, without sensor, with coolant regulator, Grey Cast Iron, with housing

Article number: 1260W0234

compared to RRP £173.20

£104. 99

Price per item

price incl. 20% VAT, excl. delivery costs

Sold by AUTODOC

P672 HEPU XT-Professional P673 Water pump Number of Teeth: 29, with gaskets/seals, with pipe socket, with belt, with screw, with thermal management module, Mechanical

Reviews - 9

HEPU Water pump Number of Teeth: 29, with gaskets/seals, with pipe socket, with belt, with screw, with thermal management module, Mechanical

Article number: P673

compared to RRP £447.76

£354. 00

price incl. 20% VAT, excl. delivery costs

Sold by AUTODOC

INA 538 0733 10 Water pump Electric, for timing belt drive

Reviews - 5

INA Water pump Electric, for timing belt drive

Article number: 538 0733 10

£122. 49

price incl. 20% VAT, excl. delivery costs

Sold by AUTODOC

MWP0644 MEYLE 113 220 0033 Water pump with gasket/seal, with thermostat, with housing, for timing belt drive

Reviews - 5

MEYLE Water pump with gasket/seal, with thermostat, with housing, for timing belt drive

Article number: 113 220 0033

compared to RRP £423.68

£294. 00

price incl. 20% VAT, excl. delivery costs

Sold by AUTODOC

Final Thoughts

Addressing Audi A3 water pump faults early helps avoid overheating-related damage. Water pumps are often expected to last roughly 60,000–100,000 miles, but lifespan varies, so treat leaks, noise, or overheating as priority issues.

Where the pump is driven by the timing belt, it is often cost-effective to replace the pump at the same time as the belt, because access overlaps.

Whether you do the job yourself or use a garage, choose parts that match your engine code, and follow the correct coolant specification and bleeding procedure. AUTODOC supplies genuine and OEM-equivalent water pumps for all Audi A3 models, with comprehensive vehicle compatibility information and fast UK delivery to keep repair costs manageable whilst maintaining quality standards.

Frequently Asked Questions (FAQ)

How long does an Audi A3 water pump last?

Many water pumps last around 60,000–100,000 miles, but it depends on engine design, maintenance, and operating conditions. Follow the vehicle’s maintenance guidance, and investigate leaks or overheating immediately.

Can I drive my Audi A3 with a failing water pump?

Avoid driving if you suspect the water pump is failing, because overheating can cause severe engine damage. If the temperature rises beyond normal, stop safely, switch off the engine, and arrange recovery.

Should I replace the thermostat with the water pump?

On some engines, the thermostat and pump are a single module, so they are replaced together as one assembly. On other engines, they are separate, and replacement depends on condition, fault codes, and access during the job.

What tools do I need for Audi A3 water pump replacement?

A typical list includes a metric socket set, a torque wrench, a coolant drain pan, and safe lifting equipment. Timing belt-driven pumps may require engine-specific locking tools and procedures, so a workshop manual for your engine code is strongly recommended.

Where can I buy quality Audi A3 water pump parts in the UK?

AUTODOC supplies genuine Audi and premium OEM-quality water pumps from manufacturers like INA, Graf, and Gates. The website provides exact vehicle compatibility matching, ensuring you receive the correct pump for your specific A3 model and engine code. Orders typically deliver within 1-2 working days across the UK, with customer service to assist with technical queries and fitment confirmation.
